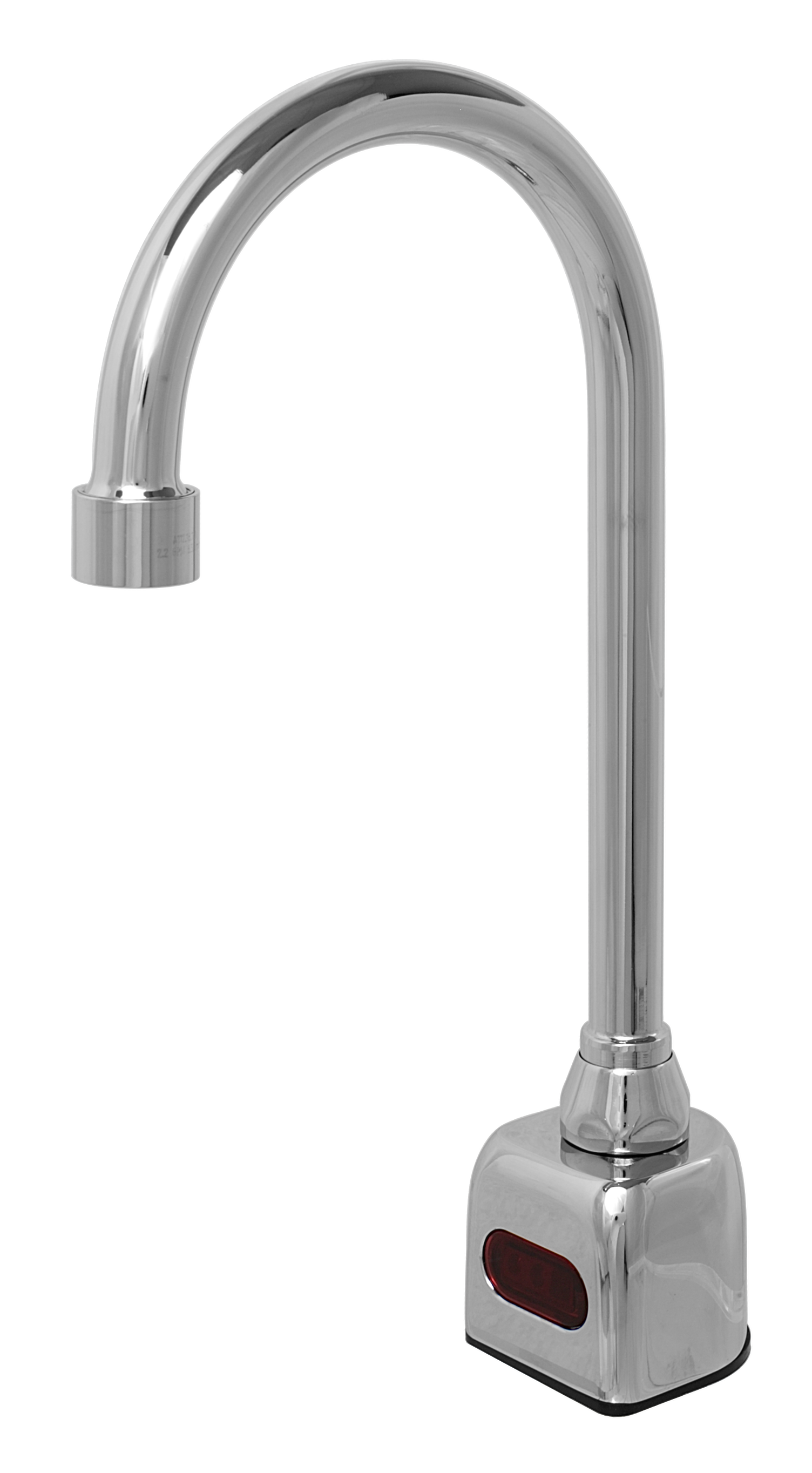

6000C Series

The 6000C Series faucet is a piston operated sensory faucet that provides a vandal resistant, no touch solution that promotes better hygiene and energy savings.The 6000C Series faucet is ideal in clinics, hospitals, and manufacturing facilities for scrub stations.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability

  • ACCU-SENSE adjustable sensor eyes.
  • Chrome plated, solid brass construction.
  • Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
  • Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
  • Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
  • Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
  • Standard single-hole deck mount. Adapts to optional 4″ to 8″ cover plates.
  • Includes in-line filters with clean-out trap to reduce maintenance costs.
  • Standard 6″ gooseneck spout and 2.0 GPM Laminar Flow Control. 0.35, 0.5, 1.5 & 2.2 GPM flow control also available.
  • All parts are field replaceable to ensure quick and easy repair.
  • Same faucet is field switchable to/from AC Powered or Battery Powered.
  • Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
  • Control module automatically performs a unique self-check of all electrical components.
  • No-touch system enhances hygiene in medical, institutional, food service industries, etc.
  • For the AC with DC Backup version, the battery backup picks up in the event of a power outage, ensuring that the faucet is always ready to go.

H-6000C AC Powered, non-mixing, Automatic Faucet:

Single-hole deck mount, non-mixing automatic gooseneck faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 6” gooseneck spout with 2.0 GPM Laminar flow control, 6V DC, slow-closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries.  Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 0 seconds but adjustable to 15, 30, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.


HB-6000C Battery Operated, Non-Mixing, Automatic Gooseneck Faucet:

Single-hole deck mount, non-mixing, automatic gooseneck faucet with chrome plated, solid brass construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 2.0 GPM Laminar flow control as standard, 6V DC, slow-closing solenoid valve, battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 0 seconds but adjustable to 0, 15, 30, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.

This model is offered in the following options and list prices:

AC POWERED

H-6000C Gooseneck Faucet, Deck Mount, Non-mixing $439.68
H-6000C-DC Gooseneck Faucet, Deck Mount, Non-mixing, w/ DC Backup $469.68
H-6000C-LR Low Lead Gooseneck Faucet, Deck Mount, Non-mixing $474.85
H-6000C-LRDC Low Lead Gooseneck Faucet, Deck Mount, Non-mixing, w/ DC Backup $488.20

BATTERY POWERED

HB-6000C Gooseneck Faucet, Deck Mount, Non-mixing $439.68
HB-6000C-LR Low Lead Gooseneck Faucet, Deck Mount, Non-mixing $474.85

The following accessories are available for this model:
HBL-03 Thermostatic, Anti-Scald Mixing Valve – 3/8″ In/Out with Checks $121.65
HBL-04-LR Lead Free* Thermostatic, Anti-Scald Mixing Valve – 3/8″ In/Out with Checks $155.05
HC-001 Mechanical Mixing/Check Valve – 3/8″ Compression $51.67
HC-006E 4″ Cover Plate w/ Mounting Kit (H/HB-2603C, 6000C, 6700C) $27.26
HC-006F 8″ Cover Plate w/ Mounting Kit (H/HB-2603C, 6000C, 6700C) $41.67
HC-007A 6″ Gooseneck Spout w/ 2.0 GPM Laminar Flow Control $41.78
HC-007E 6″ 45-degree Swing Gooseneck Spout w/ 2.0 Laminar Flow Control $32.53
HC-007F 8″ 45-degree Swing Gooseneck Spout w/ 2.0 Laminar Flow Control $39.79
HC-007G 8″ Gooseneck Spout w/ 2.0 GPM Laminar Flow Control $52.68
HC-009B In-Line Filter w/o Check (All except H/HB-3000, 4000, 3000C, 4000C) $32.69
HC-010 Multi-Unit Power Adapter (8 units total) $89.25
HC-0104 Multi-Unit Power Adapter (4 units total) $63.84
HC-015C Mounting Kit (H/HB-2603, 6000B, 6700; 2603C, 6000C, 6700C) $17.83
HC-020 Filter Screen (All Faucet Models) $4.89
HCB-017A Solenoid Valve Repair Kit (for HCB-005 Solenoid Valve) $28.16
HCC-003A Control Box Assembly (H-1000C, 2603C, 6000C, 6700C) $281.50
HCC-005 Solenoid Valve (HB-1000C, 2603C, 6000C, 6700C) $171.01
HCC-005-04A
Piston Set $13.95
HCC-008B 12V DC Plug-In Adapter (C-Series) $41.34
HCC-011A Control Module (H-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-011B Control Module (HB-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-019 Coil Module (for HCC-005 Solenoid Valve) $120.27
HCC-031 Sensor Eyes and Cable (H/HB-2603C, 6000C) $83.73
