5000E Series

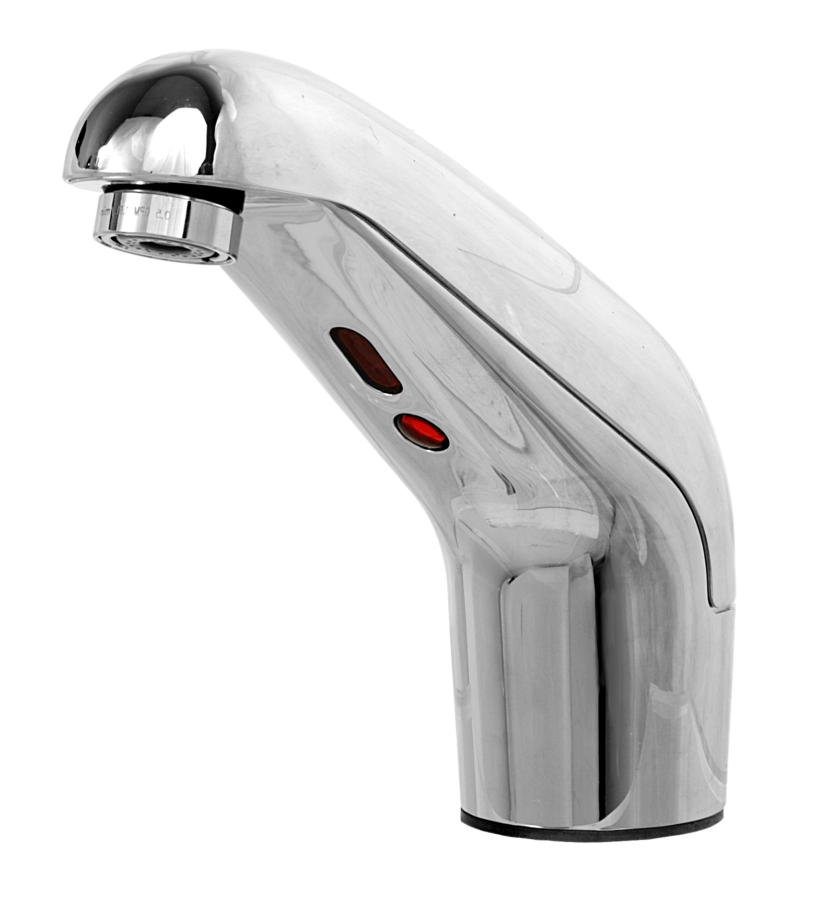

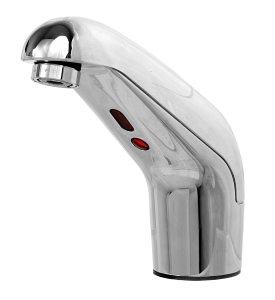

 The 5000E Series faucet is an elegant piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution that promotes better hygiene and energy savings.Designed to be easy to install and maintain, all major faucet components are encased above deck, making for easier access. The sensor included in this faucet is self adapting, meaning manual adjustments are not necessary and the innovative sensor placement eliminates ambient reflectivity issues.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability

  • Vandal-resistant faucet body with chrome plated, solid metal construction.
  • Faucet design allows for quick, simple installation.
  • Clam shell design allows quick “above the deck” access to all major faucet component parts.
  • Slow closing solenoid valve provides reliable and smooth operation without water hammer.
  • Available in AC powered or battery powered versions.
  • Unique energy saving design of electronics and solenoid valve for long battery life.
  • Armored, vandal-resistant AC power input cable (AC powered version).
  • Sensor eye positioning eliminates ambient reflectivity issues.
  • “Self-adapting” sensor distance adjustment eliminates the need for manual sensor adjustments.
  • 30 second time-out features prevents accidental sink overflow.
  • Built-in, replaceable filter screen to reduce maintenance cost.
  • Low battery indicator light (Battery powered versions).
  • Unique electronic control module design allows for faucet electronic component diagnostics.
  • Standard 0.5 GPM vandal resistant aerator.
  • Single-hole deck mounting with optional 4″ and 8″ cover plate for vandal resistant three point anchoring.

H-5000E AC Powered, non-mixing, Automatic Faucet:

Single-hole deck mount, non-mixing, automatic, lavatory faucet with chrome plated, solid, all metal construction. Includes faucet, sensor assembly, 6V DC slow-closing solenoid valve, plug-in power adapter, armored / vandal resistant faucet input power cable, one (1) 3/8” braided S.S. supply line, one (1) in-line filter, 0.5 GPM vandal resistant aerator and all necessary faucet mounting hardware. All major faucet components (sensor, control module PCB, and solenoid valve) are housed in an innovative, vandal resistant, clam-shell designed faucet body for easy installation and quick above the deck access. Unique mounting of self-adapting sensor resolves all potential reflectivity issues.

HB-5000E Battery Powered, non-mixing, Automatic Faucet:

Single-hole deck mount, non-mixing, automatic, lavatory faucet with chrome plated, solid, all metal construction. Includes faucet, sensor assembly, 6V DC slow-closing solenoid valve, one (1) 3/8” braided S.S. supply line, one (1) in-line filter, 0.5 GPM vandal resistant aerator, four (AA) Alkaline Batteries and all necessary faucet mounting hardware. All major faucet components (sensor, battery holder, control module PCB and solenoid valve) are housed in an innovative, vandal resistant, clam-shell designed faucet body for easy installation and quick above the deck access. Unique mounting of self-adapting sensor resolves all potential reflectivity issues.

This model is offered in the following options and list prices:

AC POWERED

H-5000E Lavatory Faucet, Above-Deck Components, Non-mixing $360.88
H-5000E-LR Low Lead Lavatory Faucet, Above Deck Components, Non-mixing $389.75

BATTERY POWERED

HB-5000E Lavatory Faucet, Above-Deck Components, Non-mixing $360.88
HB-5000E-LR Low Lead Lavatory Faucet, Above Deck Components, Non-mixing $389.75

The following accessories are available for this model:
HC-001 Mechanical Mixing/Check Valve – 3/8″ Compression $56.67
HC-006K 4″ Cover Plate w/ Mounting Kit (H/HB-5000E, 5000EM) $27.26
HC-006L 8″ Cover Plate w/ Mounting Kit (H/HB-5000E, 5000EM) $41.67
HC-009A In-Line Filter/Check Valve (H/HB-3000, 4000; 3000C, 4000C) $43.86
HC-010E Multi-Unit Power Adapter (8 units total) $85.00
HCC-005 Solenoid Valve (HB-1000C, 2603C, 6000C, 6700C) $162.87
HCE-004 Solenoid Module, without Solenoid Coil (E-Series Faucets) $75.88
HCE-008 7.5V DC Plug-In Adapter (E-Series Faucets) $34.25
HCE-018A Control Module (H-5000E, 5000EM) $187.40
HCE-018B Control Module (HB-5000E, 5000EM) $187.40
HCE-019 Solenoid Coil Only $75.88
HCE-194 Solenoid Coil (E-Series Faucets) $132.67
