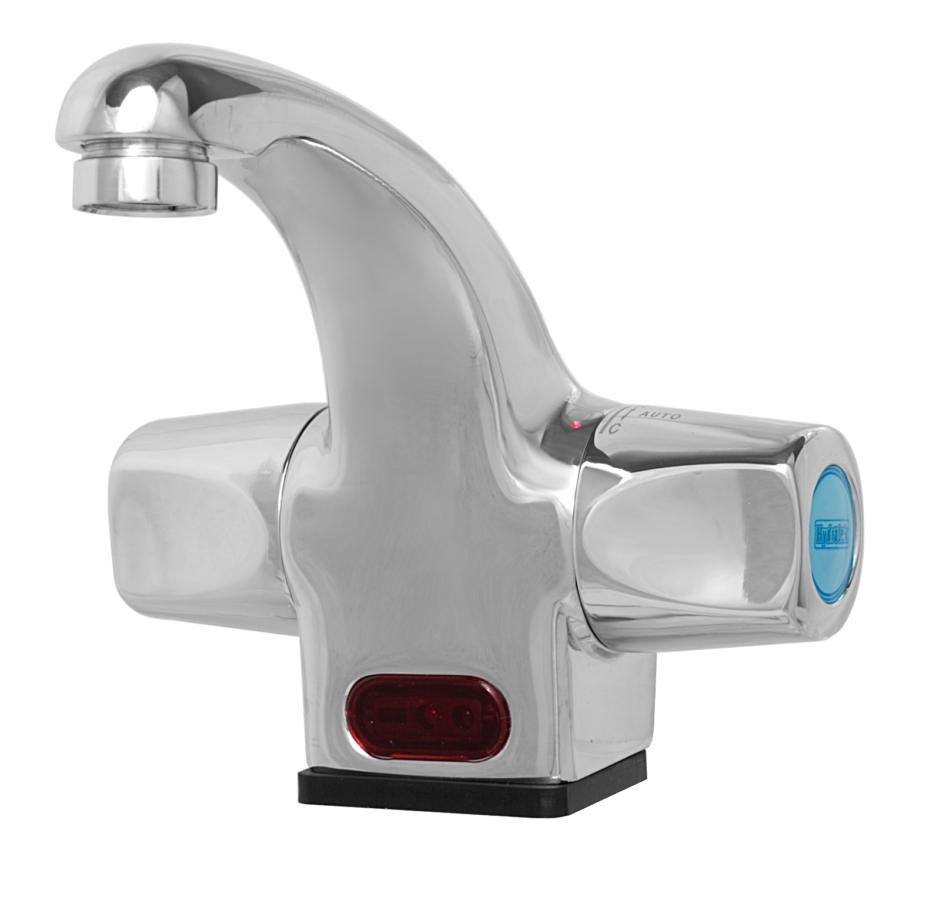

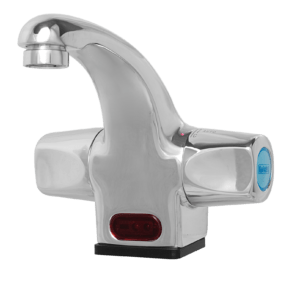

3000C Series

The 3000C Series faucet is a single-hole deck mount, piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution with hot/cold mixing and manual on/off adjustments that promotes better hygiene and energy savings.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability
  • ACCU-SENSE adjustable sensor eyes.
  • Chrome plated, solid brass construction.
  • Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
  • Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
  • Standard automatic time-out feature. Preset at 0 and adjustable to 15, 30, 60 seconds. Prevents sink overflow.
  • Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
  • Standard single-hole deck mount. Adapts to optional 4″ to 8″ cover plates.
  • Includes in-line filter with clean-out trap to reduce maintenance costs.
  • Same faucet is field switchable to/from AC powered or battery powered.
  • Patented electronics and slow closing solenoid valve provide reliable and smooth operation without water hammer.
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
  • Standard 2.0 GPM Laminar Flow Control. 0.35, 0.5, 1.5, 1.6, & 2.2 GPM flow control also available.
  • Control module allows a unique self-check of all electrical components.
  • Manual override provides continuous water flow for special applications or in case of power failure.
  • Manually controlled temperature adjustment.
H-3000C AC Powered, mixing, Automatic Faucet with Temperature Control & Manual Override:

Single-hole deck mount, mixing, automatic faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries. Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range; preset/adjustable time-out feature (preset at 0 seconds and adjustable for 15, 30, or 60 seconds), preset/adjustable shut-off delay (preset at 1 second and adjustable up to 8 seconds).


HB-3000C Battery Operated, Mixing, Automatic Faucet with Temperature Control & Manual Override:

Single-hole deck mount, mixing, automatic faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, battery holder with four (4) AA batteries, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter.  Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 0, 15, 30, or 60 seconds), preset/adjustable shut-off delay (Preset at 1 second and adjustable up to 8 seconds).

This model is offered in the following options and list prices:

AC POWERED

H-3000C Lavatory Faucet, Mixing & Manual On/Off $568.68
H-3000C-DC Lavatory Faucet, Mixing & Manual On/Off, w/ DC Backup $588.68

BATTERY POWERED

HB-3000C Lavatory Faucet, Mixing & Manual On/Off $568.68
The following accessories are available for this model:
HB-003CM Laminar Flow Control – 2.0 GPM – Male $15.40
HC-006H 4″ Cover Plate w/ Mounting Kit (H/HB-3000C, 4000C, 4000C-SD) $27.26
HC-006J 8″ Cover Plate w/ Mounting Kit (H/HB-3000C, 4000C, 4000C-SD) $41.67
HC-009A In-Line Filter/Check Valve (H/HB-3000, 4000; 3000C, 4000C) $43.86
HC-010 Multi-Unit Power Adapter (8 units total) $89.25
HC-0104 Multi-Unit Power Adapter (4 units total) $63.84
HC-078 “O” Ring Kit, Temperature Adjuster Rod Assembly $16.33
HCB-017B Solenoid Valve Repair Kit (HB-3000, 4000) $28.16
HCC-005-04A Piston Set $13.95
HCC-008B 12V DC Plug-In Adapter (C-Series) $41.34
HCC-011A Control Module (H-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-011B Control Module (HB-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-019 Coil Module (for HCC-005 Solenoid Valve) $120.27
HCC-032 Sensor Eyes and Cable (H/HB-3000C, 4000C) $83.73
HCC-103A Battery Holder Only (for C-Series Faucets) $7.59



HB-3000C Battery Operated, Mixing, Automatic Faucet with Temperature Control & Manual Override:
Single-hole deck mount, mixing, automatic faucet with chrome plated, solid brass construction with built-in temperature control and manual override. Includes faucet/sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 1.6 GPM Laminar Flow Control, 6V DC slow closing solenoid valve, battery holder with four (4) AA batteries, two (2) 3/8” braided S.S. supply lines, two (2) in-line filter/check valves with two (2) 3/8” compression adapters and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter.Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset/adjustable time-out feature (preset at 0 seconds and adjustable to 0, 15, 30, or 60 seconds), preset/adjustable shut-off delay (Preset at 1 second and adjustable up to 8 seconds).
