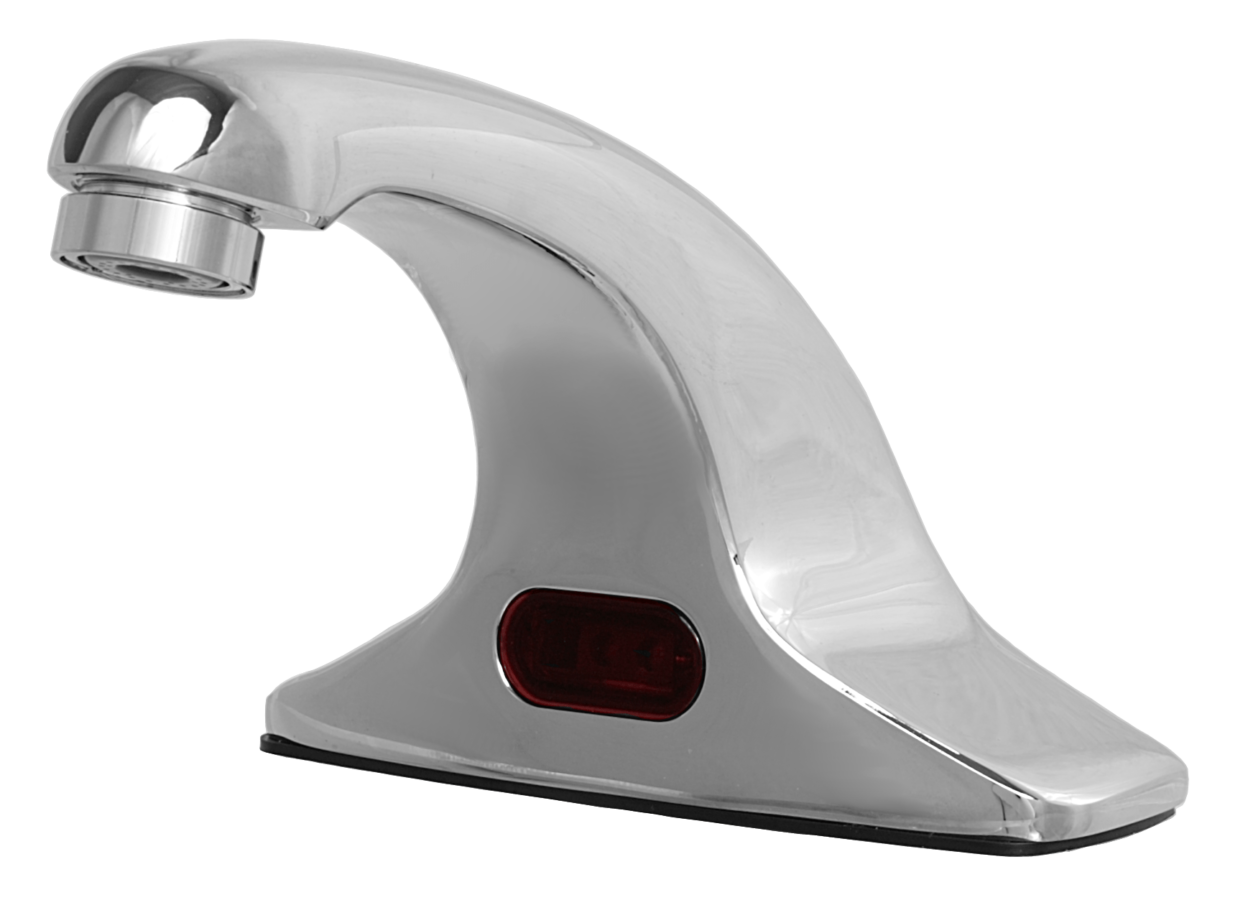

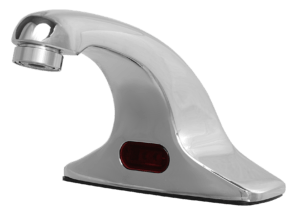

1000C Series

 The 1000C Series faucet is a 4-inch center-set, piston operated sensory faucet that provides a vandal resistant, no touch lavatory solution that promotes better hygiene and energy savings.

  • ADA Compliant. Meets all barrier free codes
  • Conserves water and energy
  • Easily installed in new or retrofit applications
  • Competitively priced for today’s commercial market
  • Promotes cleanliness & hygiene
  • Proven Hydrotek craftsmanship and reliability

  • ACCU-SENSE adjustable sensor eyes.
  • All solid brass construction.
  • Wall mountable, waterproof control box with armored, vandal resistant control and power cables.
  • Preset/adjustable sensor ranges 6″ – 30″ for various installation requirements.
  • Standard automatic time-out feature. Preset at 30 and adjustable to 0, 15, 60 seconds. Prevents accidental sink overflow.
  • Shut-off delay is adjustable from 1 second (preset) to 8 seconds.
  • Solid brass body with cast 4″ center-set and 3 point anchoring system. Twist-free and tamper resistant. Adapts to 8″ center-set.
  • Includes in-line filter with clean out trap to reduce maintenance costs.
  • All parts are field-replaceable to ensure quick and easy repair.
  • Same faucet is field switchable to/from AC or battery powered.
  • Slow closing, piston-operated solenoid valve provides reliable and smooth operation without water hammer.
  • Superior VSI silicone elastomer piston seals are unaffected by chlorine, chloromines or ammonia.
  • Standard 0.5 GPM flow control for water conservation and annual savings.
  • Control module allows a unique self-check of all electrical components.

H-1000C AC Powered, Non-Mixing, Automatic Faucet:

Three hole deck mount, non-mixing, automatic faucet with chrome plated, solid brass 4” centerset construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 0.5 GPM vandal resistant aerator, 6V DC, slow-closing solenoid valve, plug-in power adapter with armored/vandal resistant output cable, 3/8” copper supply tube, in-line filter and mounting hardware. Faucet unit is field convertible to battery operation with addition of optional battery holder and four (4) AA batteries.  Features include ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 30 seconds but adjustable to 0, 15, or 60 seconds, preset shut-off delay for 1 second but adjustable up to 8 seconds.

HB-1000C Battery Operated, Non-Mixing, Automatic Faucet:

Three hole deck mount, non-mixing, automatic faucet with chrome plated, solid brass 4” centerset construction. Includes faucet, sensor assembly with armored/vandal resistant control cable, wall mountable/vandal and water resistant control box, 0.5 GPM vandal resistant aerator as standard, 6V DC, slow-closing solenoid valve, battery holder with (4) AA Batteries, 3/8” copper supply tube, in-line filter, and mounting hardware. Faucet is field convertible to AC powered operation with addition of optional Plug-in Power Adapter.  Features include: ACCU-SENSE preset/adjustable Sensor Beam Angle, preset/adjustable sensor range, preset automatic time-out for 30 seconds but adjustable to 0, 15, or 60 seconds, preset shut-off delay for 1 second but adjustable up 8 seconds.

This model is offered in the following options and list prices:

AC POWERED

H-1000C Lavatory Faucet, 4″ Center-Set, Non-mixing $403.23
H-1000C-DC Lavatory Faucet, 4″ Center-Set, Non-mixing, w/ DC Backup $433.23
H-1000C-LR Low Lead Lavatory Faucet, 4″ Center-Set, Non-mixing $435.49
H-1000C-LRDC Low Lead Lavatory Faucet, 4″ Center-Set, Non-mixing, w/ DC Backup $465.49

BATTERY POWERED

HB-1000C Lavatory Faucet, 4″ Center-Set, Non-mixing $403.24
HB-1000C-LR Low Lead Lavatory Faucet, 4″ Center-Set, Non-mixing $435.49

The following accessories are available for this model:
HC-001 Mechanical Mixing/Check Valve – 3/8″ Compression $56.67
HC-006G 8″ Cover Plate w/ Mounting Kit (H/HB-1000C) $41.67
HC-009B In-Line Filter w/o Check (All except H/HB-3000, 4000, 3000C, 4000C) $32.69
HC-010 Multi-Unit Power Adapter (8 units total) $85.00
HC-0104 Multi-Unit Power Adapter (4 units total) $60.79
HCB-017A Solenoid Valve Repair Kit (for HCB-005 Solenoid Valve) $26.81
HCC-003A Control Box Assembly (H-1000C, 2603C, 6000C, 6700C) $281.50
HCC-003B Control Box Assembly (HB-1000C, 2603C, 6000C, 6700C) $281.50
HCC-005 Solenoid Valve (HB-1000C, 2603C, 6000C, 6700C) $162.87
HCC-005-04A Piston Set $11.75
HCC-008B 12V DC Plug-In Adapter (C-Series) $41.34
HCC-011A Control Module (H-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-011B Control Module (HB-1000C, 2603C, 3000C, 4000C, 6000C, 6700C) *Specify model* $167.71
HCC-019 Coil Module (for HCC-005 Solenoid Valve) $120.27
HCC-030 Sensor Eyes and Cable (H/HB-1000C) $79.73
